Max. Flow Rate : 120, 300, 470, 750 l/min
Max. Pressure : 8, 13 bar
Max. Temperature : 50, 90 °C
İvedik Org. San. Böl. 1444. Sok. No: 8 Ostim-Ankara-Türkiye
-
Phone
+90 312 394 12 70 -
eb@ebsujeti.com.tr

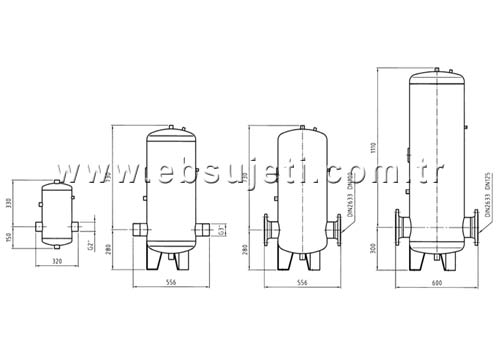

Pump Suction Stabilizers
Contact Us: (+90) 312 394 12 70 (+90) 532 471 29 58 eb@ebsujeti.com.tr
| Type | Max. Flow Rate | DN | Max. Pressure | Max. Temperature | G | Production Material | Stabilizer Part No |
With Equipment Part No |
|---|---|---|---|---|---|---|---|---|
| l/min | ID | bar | °C | |||||
| I | 120 | 2" | 8 | 50 | 11 kg | Steel Coating, Galvanized | 88.53.3495 | 88.53.3628 |
| Steel Coating | 88.53.6420 | 88.53.6423 | ||||||
| II | 300 | 3" | 8 | 50 | 81 kg | Steel Coating, Galvanized | 22.55.1501 | 22.53.1857 |
| Steel Coating | 88.53.7067 | 88.53.7071 | ||||||
| 470 | DN 100 | 13 | 90 | Steel Coating, Galvanized | 88.53.7069 | 88.53.7073 | ||
| Steel Coating | 88.53.7068 | 88.53.7072 | ||||||
| III | 750 | DN 125 | 8 | 50 | 154 kg | Steel Coating, Galvanized | 88.53.7068 | 88.53.7072 |
| Steel Coating | 88.53.7069 | 88.53.7074 |
